JOS-1FW
$872.50

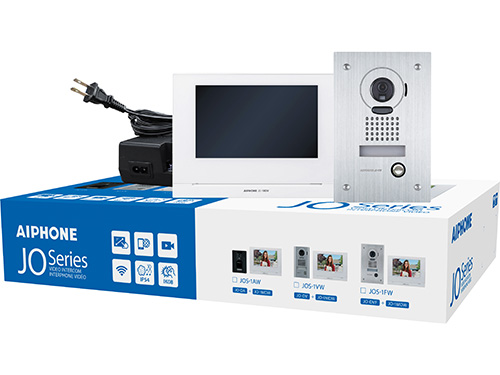

Mobile-Ready Box Set with Flush-Mount Door Station
This box kit contains the JO-1MDW an analog answering station with a 7” touchscreen display and WiFi capabilities, allowing mobile apps to be added to a JO system. The JO-1MDW has two normally open dry contacts and built-in memory that can be utilized to record calls, with the option of increasing the storage capacity using a MicroSD card. The box kit also contains the JO-DVF a flush-mount stainless-steel analog door station with an IP 54 rating and an IK07 rating. The box kit also contains the PS-1820UL a UL, and CSA listed 18v Class II power supply.
Features
- Connect up to 8 mobile devices per system
- Store calls using onboard memory
- Add a MicroSD card to increase memory to a maximum of 32 GB
- Watch recorded calls from the on-site master or the mobile app
- JO-DVF activates white LED light for visibility at night
Specs
Inside Monitor
- Model: JO-1MDW
- Video Display: 7″ TFT Touchscreen
- Mounting: Surface wall mount or desk mount with MCW-S stand
- Internal Call Recording: 10 calls max. @ 10 seconds/call
- Memory Expansion: micro SDHC card slot, 32GB max.
- Call Recording with max memory: 1,000 calls max. @ 10 seconds/call
- Communication style: Handsfree or PTT
- Wireless Frequency: 2.4 GHz
- Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)
App
- Model: Intercom App Type B
- Max per system: 8 devices
- Available at: Apple App Store℠ or Google Play™
Video Door Station
- Model: JO-DVF
- Power Source: Supplied by inside monitor
- Camera: 1/4 inch color CMOS
- Mounting: Flush mount using supplied box
- Faceplate Material: Stainless steel
- Enclosure Rating: IP54
- Impact Rating: IK07
- Communication style: Handsfree
- Volume: 69.9 dB
- Operational Tempature: -40°~140° F (-40° ~ 60° C)
- Wiring to master: 2-cond., low cap, solid, non-shielded
- Max. Wire distance: 165′ (22AWG) 330′ (18AWG)
Power Supply
- Model: PS-1820UL
- Power Source:AC 100~240V 50/60Hz
- Power Output: DC 18V 2A
